2-CHANNEL 16-GBPS 2:1/1:2 DIFFER

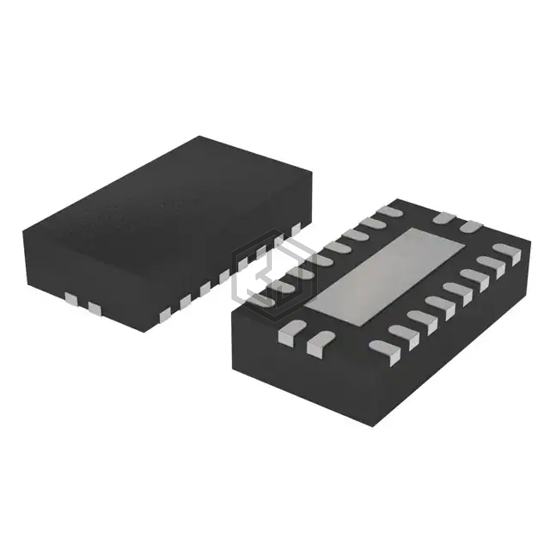

TMUXHS4212RKSR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 2-CHANNEL 16-GBPS 2:1/1:2 DIFFER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 20-VFQFN Exposed Pad, number of circuits 2.
In Stock: 2,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPST, SPDT |
| Multiplexer/Demultiplexer Circuit | 1:2, 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 8.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 1.71V ~ 1.98V, 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | 1.71V ~ 1.98V, 3V ~ 3.6V |
| Switch Time (Ton, Toff) (Max) | 100ns, 100ns |
| -3db Bandwidth | 13GHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 5µA |
| Crosstalk | -27dB @ 10GHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (4.5x2.5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84541IB | Intersil | SPST ANALOG SWITCH, 2 FUNC, 1 CH | 68% | View |
| ISL84543IH-T | Intersil | SPST ANALOG SWITCH, 2 FUNC, 1 CH | 68% | View |
| MAX4541EUA | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 68% | View |
| MAX4543ESA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8SOIC | 68% | View |
| MAX4536CSE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 62% | View |
| MAX4544EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 8UMAX | 57% | View |
Submit your RFQ for TMUXHS4212RKSR and get a quote within 24 hours.
