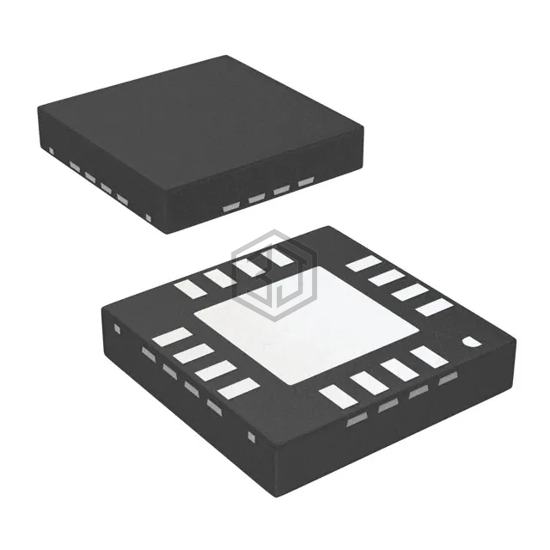

60-V FAULT-PROTECTED, 4:1, TWO-C
TMUX7309FRRPR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. 60-V FAULT-PROTECTED, 4:1, TWO-C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.
In Stock: 6,749
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | 4PST |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 250Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.5Ohm |
| Voltage - Supply, Single (V+) | 8V ~ 44V, ±5V ~ 22V |
| Voltage - Supply, Dual (V±) | 8V ~ 44V, ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 390ns, 450ns |
| -3db Bandwidth | 255MHz |
| Charge Injection | -16pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 16pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -103dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG506ATE/883B | Analog Devices Inc. | IC MULTIPLEXER 16CH 28CLCC | 82% | View |
| TMUX7308FRRPR | Texas Instruments | 60-V FAULT-PROTECTED, 8:1, ONE-C | 74% | View |
| ADG201ASRZ-EP-RL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16PLCC | 74% | View |
| ADG201ASRZ-EP | Analog Devices Inc. | IC SWITCH QUAD SPST 16PLCC | 74% | View |
| TMUX7308FPWR | Texas Instruments | 60-V FAULT-PROTECTED, 8:1, ONE-C | 74% | View |
| HI4-0507/883 | Harris Corporation | 4-CHANNEL ANALOG MUX | 57% | View |
Submit your RFQ for TMUX7309FRRPR and get a quote within 24 hours.
