IC MULTIPLEXER

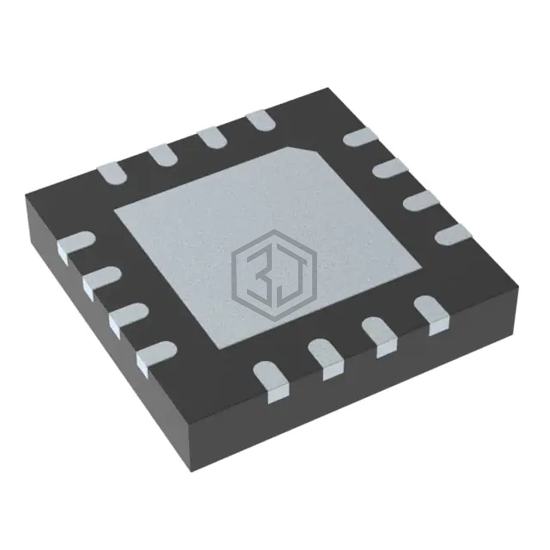

TMUX6211RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 4.
In Stock: 5,559
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 3.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V, ±4.5V ~ 18V |
| Voltage - Supply, Dual (V±) | 4.5V ~ 36V, ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 180ns, 200ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 78pC |
| Channel Capacitance (CS(off), CD(off)) | 28pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -93dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX6212RUMR | Texas Instruments | IC MULTIPLEXER | 100% | View |
| TMUX6213PWR | Texas Instruments | 2.2-NV/HZ, LOW-POWER, 36-V OPERA | 100% | View |
| TMUX6211PWR | Texas Instruments | OVERVOLTAGE PROTECTION FOR 2-SER | 100% | View |
| TMUX7211RUMR | Texas Instruments | IC MULTIPLEXER | 99% | View |
| TMUX7212PWR | Texas Instruments | 44-V, LOW RON, 1:1 (SPST), FOUR- | 99% | View |
| TMUX7211PWR | Texas Instruments | 2.2-NV/HZ, LOW-POWER, 36-V OPERA | 97% | View |
Submit your RFQ for TMUX6211RUMR and get a quote within 24 hours.
