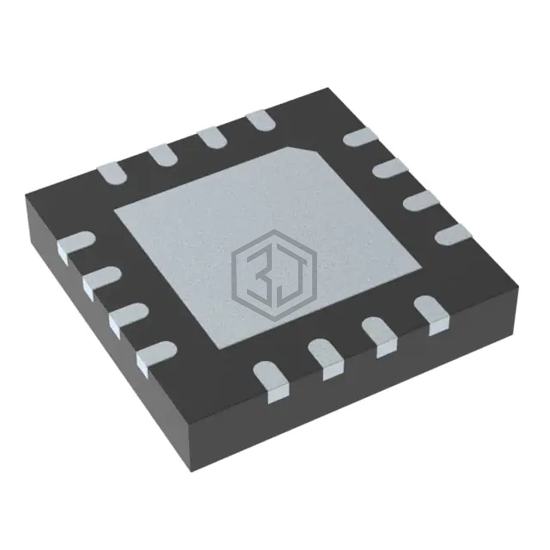

IC MULTIPLEXER
TMUX6209RUMR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WQFN Exposed Pad, number of circuits 2.
In Stock: 5,968
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | 4PST |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 6.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 4.5V ~ 36V, ±4.5V ~ 18V |
| Voltage - Supply, Dual (V±) | 4.5V ~ 36V, ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 200ns, 290ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 400pA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX6208RUMR | Texas Instruments | IC MULTIPLEXER | 79% | View |
| MAX4582AUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 62% | View |
| MAX4582AUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 62% | View |
| MAX4583AUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16TSSOP | 57% | View |
| MAX4583ASE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH TRIPLE SPDT 16SOIC | 57% | View |
| MAX4581ASE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 54% | View |
Submit your RFQ for TMUX6209RUMR and get a quote within 24 hours.
