LOW-CAPACITANCE, 2:1 (SPDT) 4-CH

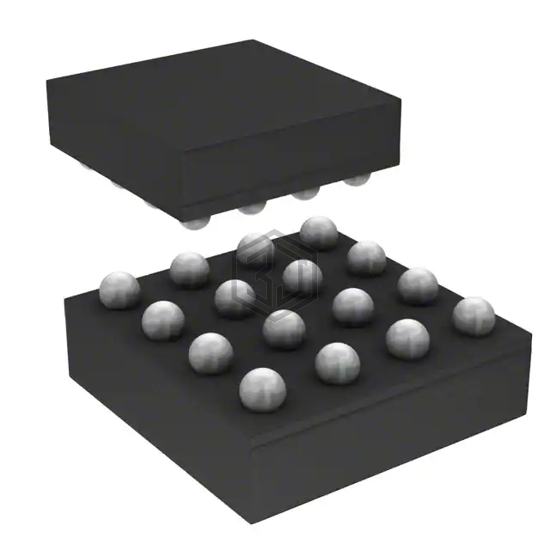

TMUX1575YCJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. LOW-CAPACITANCE, 2:1 (SPDT) 4-CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-BGA, WLCSP, number of circuits 4.
In Stock: 35,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.08V ~ 3.6V |
| Voltage - Supply, Dual (V±) | 1.08V ~ 3.6V |
| Switch Time (Ton, Toff) (Max) | 130ns, 60ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-BGA, WLCSP |
| Supplier Device Package | 16-WLCSP (1.34x1.34) |
