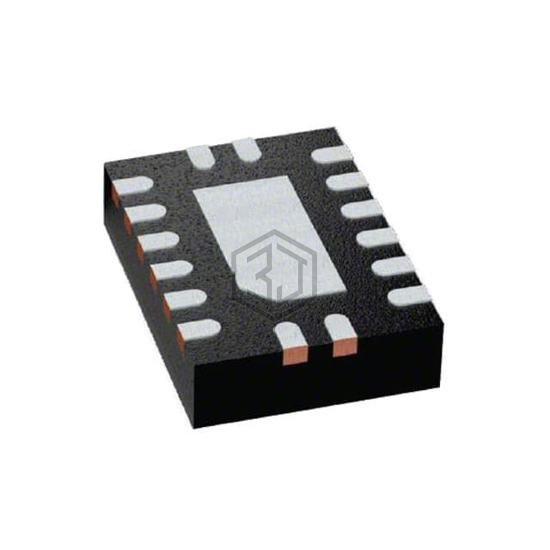

AUTOMOTIVE, 2-CHANNEL, 4:1 GENER
TMUX1309QBQBRQ1 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. AUTOMOTIVE, 2-CHANNEL, 4:1 GENER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 2.
In Stock: 1,260
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 195Ohm |
| Channel-to-Channel Matching (ΔRon) | 7Ohm |
| Voltage - Supply, Single (V+) | 1.62V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.62V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 32ns, 40ns |
| -3db Bandwidth | 500MHz |
| Charge Injection | -6.5pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA (Typ) |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-WQFN (3.5x2.5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX1309BQBR | Texas Instruments | 2-CHANNEL, 4:1 GENERAL-PURPOSE A | 100% | View |
| TMUX1309DYYR | Texas Instruments | 2-CHANNEL, 4:1 GENERAL-PURPOSE A | 100% | View |
| TMUX1309QDYYRQ1 | Texas Instruments | AUTOMOTIVE, 2-CHANNEL, 4:1 GENER | 100% | View |
| TMUX1309PWR | Texas Instruments | 2-CHANNEL, 4:1 GENERAL-PURPOSE A | 100% | View |
| TMUX1309QPWRQ1 | Texas Instruments | AUTOMOTIVE, 2-CHANNEL, 4:1 GENER | 100% | View |
| TMUX1308QDYYRQ1 | Texas Instruments | AUTOMOTIVE, 5-V, 8:1, 1-CHANNEL | 94% | View |
Submit your RFQ for TMUX1309QBQBRQ1 and get a quote within 24 hours.
