IC SWITCH

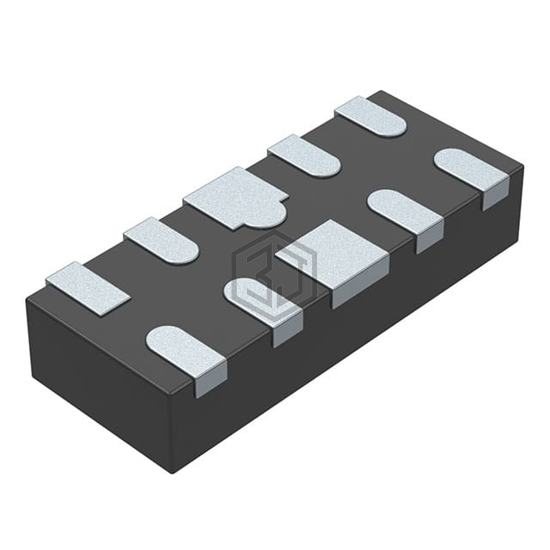

TMUX1204DQAR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH. Key specifications: operating temperature -40°C ~ 125°C (TA), package / case 10-UFDFN, number of circuits 1.
In Stock: 9,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.08V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 5ns (Typ) |
| -3db Bandwidth | 125MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 38pF |
| Current - Leakage (IS(off)) (Max) | 75nA (Typ) |
| Crosstalk | -42dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | - |
| Package / Case | 10-UFDFN |
| Supplier Device Package | 10-USON (2.5x1) |
Submit your RFQ for TMUX1204DQAR and get a quote within 24 hours.
