MULTIPLEXER

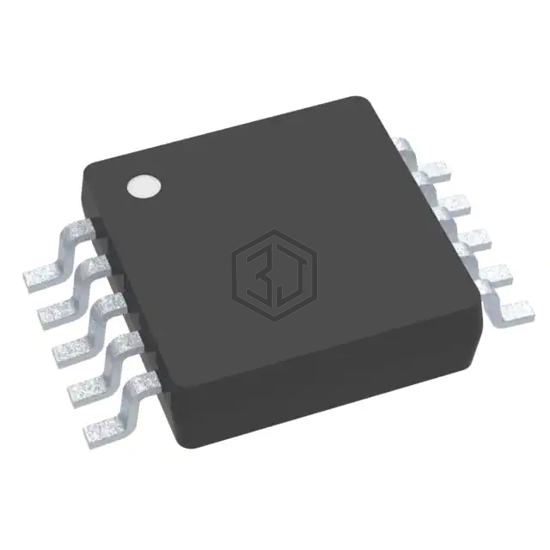

TMUX1204DGSR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. MULTIPLEXER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 3,279
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 5Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.08V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns (Typ), 5ns (Typ) |
| -3db Bandwidth | 125MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 38pF |
| Current - Leakage (IS(off)) (Max) | 75nA (Typ) |
| Crosstalk | -42dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLAS4599DTT1G | onsemi | IC SWITCH SPDT 6-TSOP | 73% | View |
| NLVAS4599DFT2G | onsemi | IC SWITCH SPDT SC88 | 73% | View |
| NLAS44599DTG | onsemi | IC SWITCH DUAL DPDT 16TSSOP | 63% | View |
| ADG708BRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 58% | View |
| ADG708BRUZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 58% | View |
| ADG708BRUZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 58% | View |
Submit your RFQ for TMUX1204DGSR and get a quote within 24 hours.
