IC SWITCH

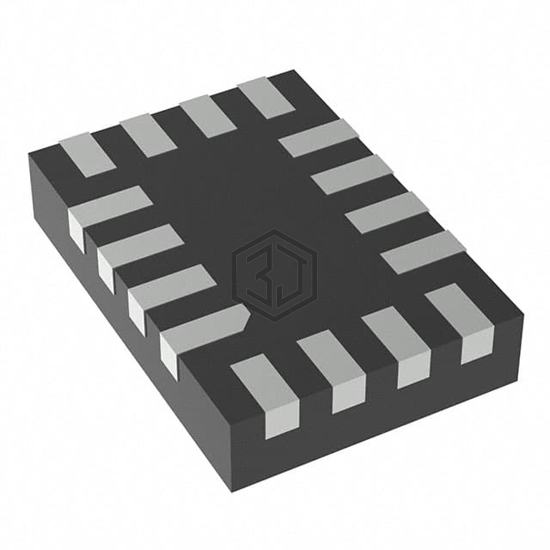

TMUX1111RSVR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH. Key specifications: operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 4.
In Stock: 7,639
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 130mOhm |
| Voltage - Supply, Single (V+) | 1.08V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 300MHz |
| Charge Injection | -1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 80pA |
| Crosstalk | -90dB @ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | - |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-UQFN (2.6x1.8) |
Submit your RFQ for TMUX1111RSVR and get a quote within 24 hours.
