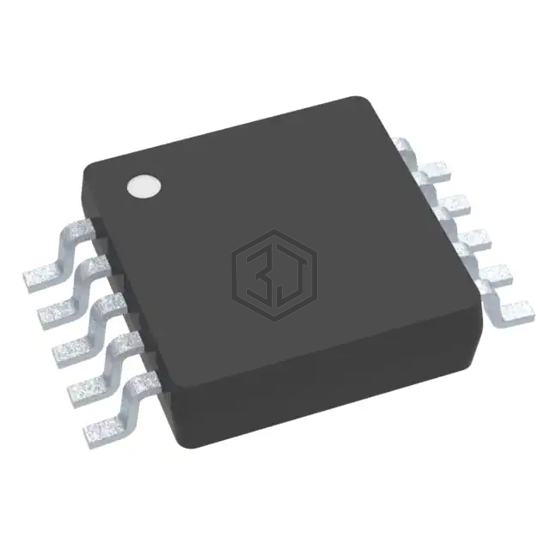

IC SWITCH SINGLE 10VSSOP
TMUX1104DGSR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SINGLE 10VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 2,392
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 130mOhm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 5ns (Typ) |
| -3db Bandwidth | 155MHz |
| Charge Injection | 1.5pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 28pF |
| Current - Leakage (IS(off)) (Max) | 80pA |
| Crosstalk | -65dB ~ -45dB @ 1MHz ~ 10MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX1104DQAR | Texas Instruments | IC SWITCH | 100% | View |
| TMUX1108RSVR | Texas Instruments | IC SWITCH SINGLE 16UQFN | 79% | View |
| ADG736BRMZ | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 65% | View |
| ADG736BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 65% | View |
| 74AHC1G66GW,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSSOP | 58% | View |
| 74AHCT1G66GW,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSSOP | 58% | View |
Submit your RFQ for TMUX1104DGSR and get a quote within 24 hours.
