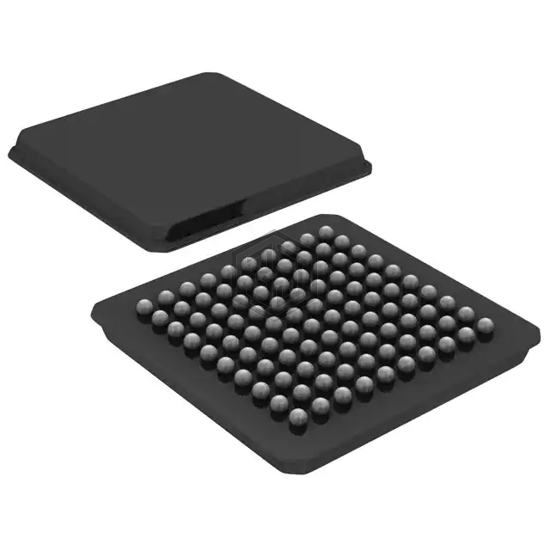

IC MCU 32BIT 256KB FLASH 100BGA
TMS320F2809ZGMA is a Embedded - Microcontrollers manufactured by Texas Instruments. IC MCU 32BIT 256KB FLASH 100BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 1.71V ~ 1.89V, package / case 100-LFBGA.
In Stock: 4,240
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, I²C, SCI, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 256KB (128K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 18K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 1.89V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LFBGA |
| Supplier Device Package | 100-BGA MICROSTAR (10x10) |
TMS320F2809ZGMA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMS320F2801PZS | Texas Instruments | IC MCU 32BIT 32KB FLASH 100LQFP | 100% | View |
| TMS320F2808ZGMS | Texas Instruments | IC MCU 32BIT 128KB FLASH 100BGA | 100% | View |
| STM32F410R8T6 | STMicroelectronics | IC MCU 32BIT 64KB FLASH 64LQFP | 95% | View |
| DSPIC33CK32MC105-E/M4 | Microchip Technology | IC MCU 16BIT 32KB FLASH 48UQFN | 91% | View |
| MC56F83783VLH | NXP USA Inc. | IC MCU 32BIT 256KB FLASH 64LQFP | 88% | View |
| STM32F413VHH6 | STMicroelectronics | IC MCU 32BIT 1.5MB FLSH 100UFBGA | 88% | View |
Submit your RFQ for TMS320F2809ZGMA and get a quote within 24 hours.
