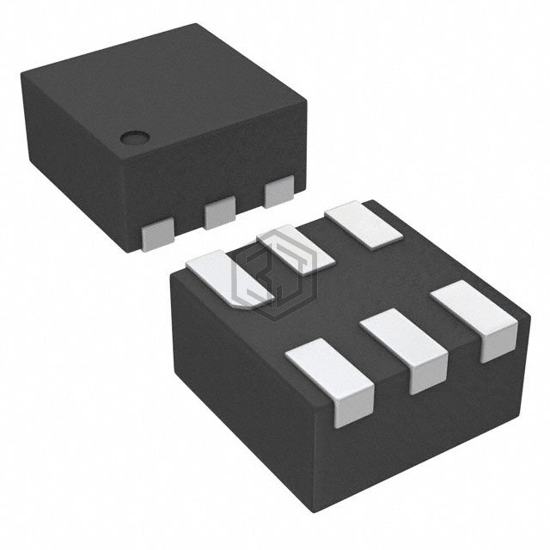

IC REG LINEAR 4.2V 300MA 6WSON
TLV70242PDSET is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 4.2V 300MA 6WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 6-WFDFN, current - supply (max) 370 µA.
In Stock: 9,634
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 4.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.375V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 370 µA |
| PSRR | 68dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN |
| Supplier Device Package | 6-WSON (1.5x1.5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLV70236DSER | Texas Instruments | IC REG LINEAR 3.6V 300MA 6WSON | 95% | View |
| TLV70233DSET | Texas Instruments | IC REG LINEAR 3.3V 300MA 6WSON | 93% | View |
| TLV70233PDBVR | Texas Instruments | IC REG LINEAR 3.3V 300MA SOT23-5 | 93% | View |
| TLV70233PDBVT | Texas Instruments | IC REG LINEAR 3.3V 300MA SOT23-5 | 93% | View |
| TLV70233DBVR | Texas Instruments | IC REG LINEAR 3.3V 300MA SOT23-5 | 93% | View |
| TLV70213DBVR | Texas Instruments | IC REG LINEAR 1.3V 300MA SOT23-5 | 80% | View |
Submit your RFQ for TLV70242PDSET and get a quote within 24 hours.
