IC ADC 10BIT SAR 20SSOP

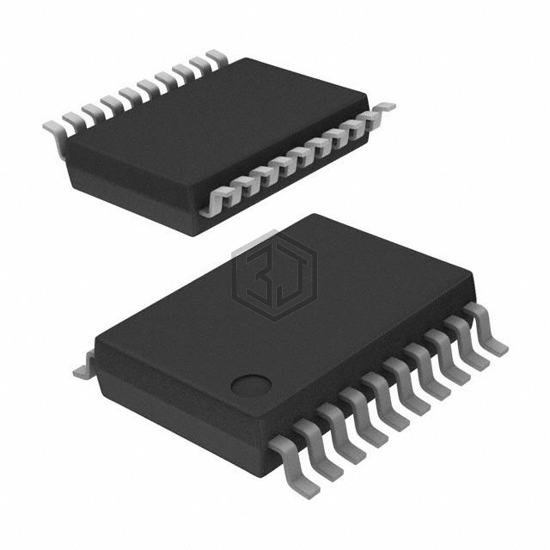

TLV1543CDBR is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Texas Instruments. IC ADC 10BIT SAR 20SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 3V ~ 5.5V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 7,372
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 38k |
| Number of Inputs | 11 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 3V ~ 5.5V |
| Features | Selectable Address |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TLV2543IDB | Texas Instruments | IC ADC 12BIT SAR 20SSOP | 98% | View |
| ADS7952QDBTRQ1 | Texas Instruments | IC ADC 12BIT SAR 38TSSOP | 88% | View |
| ADS7952SRHBR | Texas Instruments | IC ADC 12BIT SAR 32VQFN | 88% | View |
| TLC1542CDW | Texas Instruments | IC ADC 10BIT SAR 20SOIC | 87% | View |
| TLC1543IDB | Texas Instruments | IC ADC 10BIT SAR 20SSOP | 87% | View |
| TLC1543CFN | Texas Instruments | IC ADC 10BIT SAR 20PLCC | 87% | View |
Submit your RFQ for TLV1543CDBR and get a quote within 24 hours.
