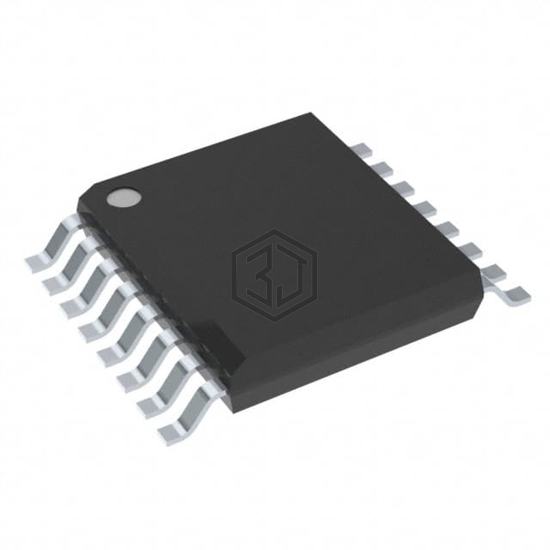

IC REG CTRLR MULT TOP 16SSOP
TL494CDBR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 16SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 7V ~ 40V, package / case 16-SSOP (0.209", 5.30mm Width).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 40V |
| Frequency - Switching | 1kHz ~ 300kHz |
| Duty Cycle (Max) | 45% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
TL494CDBR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TL594INSR | Texas Instruments | IC REG CTRLR MULT TOPOLOGY 16SO | 100% | View |
| TL494CNS | Texas Instruments | PWR MGMT VOLTAGE REFERENCE | 100% | View |
| TL594ID | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 100% | View |
| TL494CD | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 100% | View |
| TL594CPWR | Texas Instruments | IC REG CTRLR MULT TOP 16TSSOP | 100% | View |
| TL594CDR | Texas Instruments | IC REG CTRLR MULT TOP 16SOIC | 100% | View |
Submit your RFQ for TL494CDBR and get a quote within 24 hours.
