IC GATE NAND 2CH 4-INP 14DIP

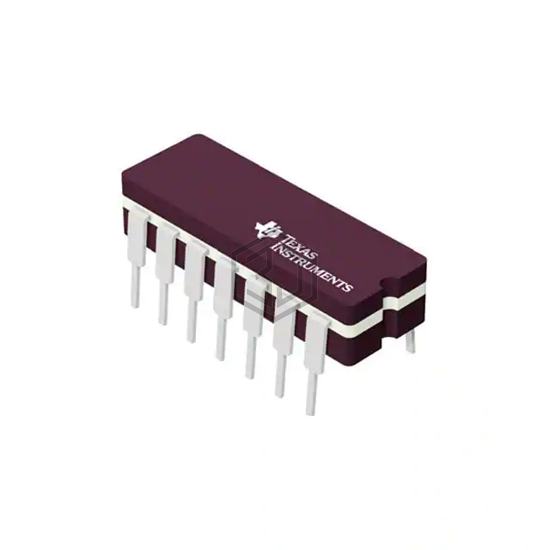

SN74S20NG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 4-INP 14DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, package / case 14-DIP (0.300", 7.62mm).
In Stock: 5,852
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 1mA, 20mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
SN74S20NG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74S20N | Texas Instruments | IC GATE NAND 2CH 4-INP 14DIP | 100% | View |
| 74F20PC | Fairchild Semiconductor | IC GATE NAND 2CH 4-INP 14DIP | 100% | View |
| SN74S20NE4 | Texas Instruments | IC GATE NAND 2CH 4-INP 14DIP | 100% | View |
| 74F10PC | National Semiconductor | NAND GATE, F/FAST SERIES, 3 FUNC | 95% | View |
| SN74F00N | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 90% | View |
| SN74F00NG4 | Texas Instruments | IC GATE NAND 4CH 2-INP 14DIP | 90% | View |
