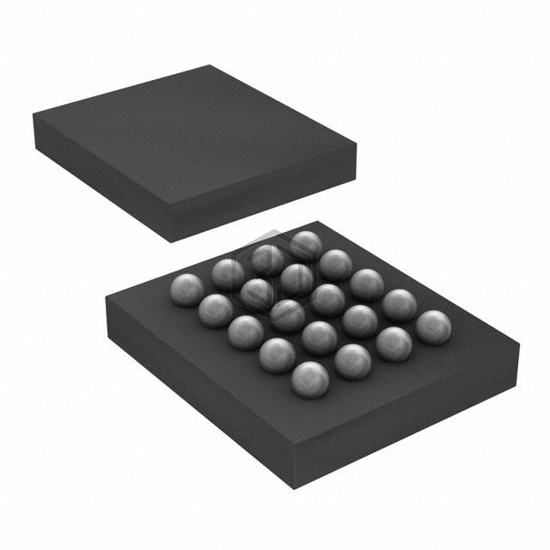

IC FF D-TYPE SNGL 8BIT 20BGA
SN74LVTH574ZQNR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20BGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.7V ~ 3.6V, package / case 20-VFBGA.
In Stock: 27,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 190 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-BGA MICROSTAR JUNIOR (4x3) |
| Package / Case | 20-VFBGA |
SN74LVTH574ZQNR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVT574WMX | onsemi | IC FF D-TYPE SNGL 8BIT 20SOIC | 98% | View |
| 74LVTH574MSA | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 20SSOP | 98% | View |
| 74LVT574PW,118 | NXP USA Inc. | IC FF D-TYPE SNGL 8BIT 20TSSOP | 95% | View |
| 74LVTH574PW,118 | NXP USA Inc. | IC FF D-TYPE SNGL 8BIT 20TSSOP | 95% | View |
| 74LVT16374AEV,151 | NXP USA Inc. | IC FF D-TYPE DUAL 8BIT 56VFBGA | 92% | View |
| NLV74LCX574DTR2G | onsemi | IC FF D-TYPE SNGL 8BIT 20TSSOP | 73% | View |
Submit your RFQ for SN74LVTH574ZQNR and get a quote within 24 hours.
