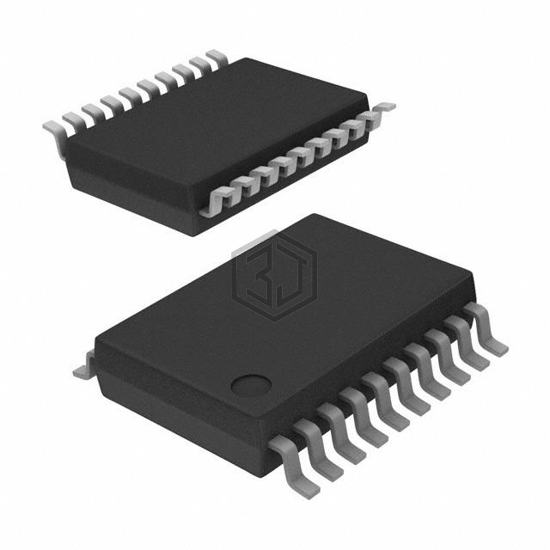

IC FF D-TYPE SNGL 8BIT 20SSOP
SN74LVT574DBR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.7V ~ 3.6V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 1,091
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 6.6ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 190 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
SN74LVT574DBR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVTH574MTCX | onsemi | IC FF D-TYPE SNGL 8BIT 20TSSOP | 95% | View |
| 74LVC374ABQ,115 | Nexperia USA Inc. | IC FF D-TYPE SNGL 8BIT 20DHVQFN | 84% | View |
| 74LCX574WM | Fairchild Semiconductor | IC FF D-TYPE SNGL 8BIT 20SOIC | 80% | View |
| SN74ALVCH16821DGGR | Texas Instruments | IC FF D-TYPE DUAL 10BIT 56TSSOP | 75% | View |
| SN74LVCH16374ADL | Texas Instruments | IC FF D-TYPE DUAL 8BIT 48SSOP | 75% | View |
| SN74ALVCH16721DGGR | Texas Instruments | IC FF D-TYPE SNGL 20BIT 56TSSOP | 74% | View |
Submit your RFQ for SN74LVT574DBR and get a quote within 24 hours.
