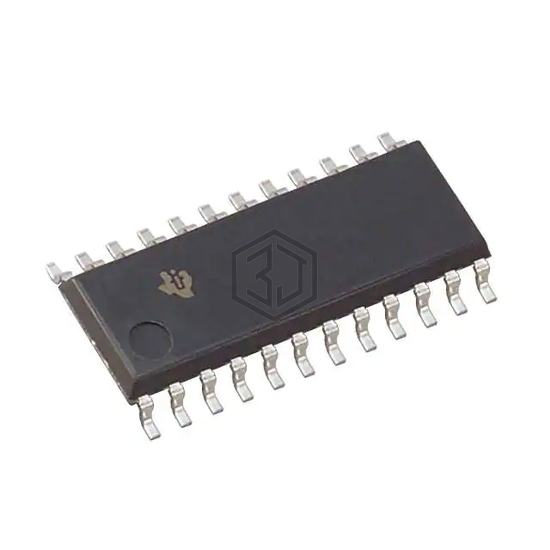

IC FF D-TYPE SNGL 10BIT 24SO
SN74LVC821ANSRE4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 10BIT 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.65V ~ 3.6V, package / case 24-SOIC (0.209", 5.30mm Width).
In Stock: 9,999
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 10 |
| Clock Frequency | 150 MHz |
| Max Propagation Delay @ V, Max CL | 7.3ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Iq) | 10 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SO |
| Package / Case | 24-SOIC (0.209", 5.30mm Width) |
SN74LVC821ANSRE4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LCX574FT | Toshiba Semiconductor and Storage | IC FF D-TYPE SNGL 8BIT 20TSSOP | 95% | View |
| 74LVCH16374APAG8 | Renesas Electronics America Inc | IC FF D-TYPE DUAL 8BIT 48TSSOP | 85% | View |
| SN74LVTH574DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 75% | View |
| SN74LVTH374PW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 75% | View |
| SN74ALVCH162721GR | Texas Instruments | IC FF D-TYPE SNGL 20BIT 56TSSOP | 74% | View |
| 74ALVT162821DGGY | Nexperia USA Inc. | IC FF D-TYPE DUAL 10BIT 56TSSOP | 71% | View |
Submit your RFQ for SN74LVC821ANSRE4 and get a quote within 24 hours.
