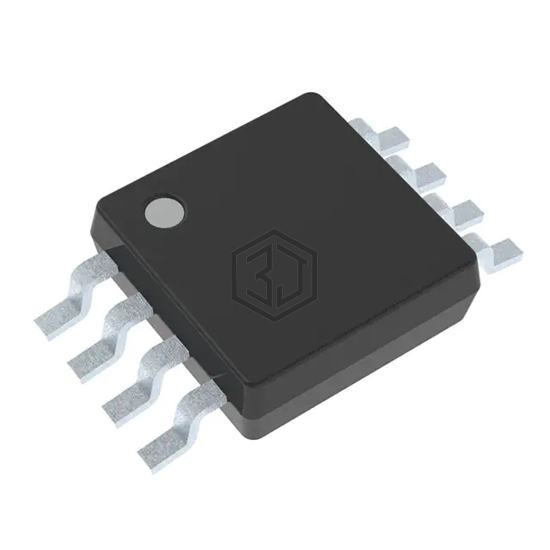

IC INVERT SCHMITT 3CH 3IN 8VSSOP
SN74LVC3G14DCU6 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 3CH 3IN 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 5,738
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.3V ~ 1.4V |
| Logic Level - High | 1.4V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
SN74LVC3G14DCU6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC2G14DBVRG4 | Texas Instruments | IC INVERTER 2CH 2-INP SOT23-6 | 95% | View |
| 74LVC3G14GN,115 | Nexperia USA Inc. | IC INVERT SCHMITT 3CH 3-IN 8XSON | 93% | View |
| 74LVC3G14GT | NXP USA Inc. | IC INVERT SCHMITT 3CH 3-IN 8XSON | 91% | View |
| 74LVC2G14GM,115 | Nexperia USA Inc. | IC INVERT SCHMITT 2CH 2-IN 6XSON | 88% | View |
| 74LVC2GU04GM,132 | Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6XSON | 80% | View |
| NL27WZ04DTT1G | onsemi | IC INVERTER 2CH 2-INP 6TSOP | 78% | View |
Submit your RFQ for SN74LVC3G14DCU6 and get a quote within 24 hours.
