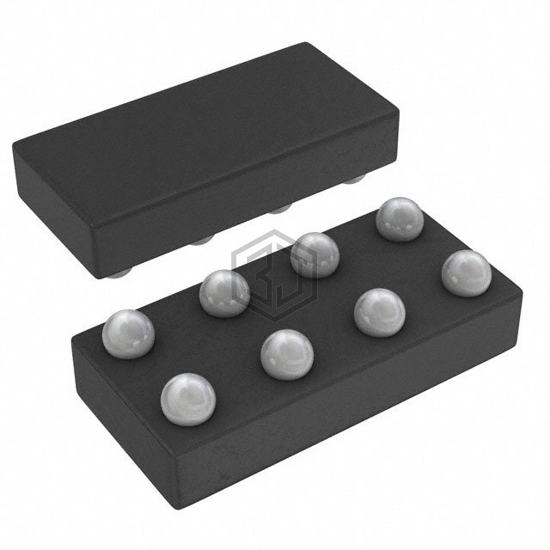

IC SWITCH SPDT 8DSBGA
SN74LVC2G53YEAR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT 8DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-XFBGA, DSBGA, number of circuits 1.
In Stock: 2,926
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 13Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 4.5ns, 8ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -58dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFBGA, DSBGA |
| Supplier Device Package | 8-XFBGA, DSBGA |
SN74LVC2G53YEAR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC2G53DCTR | Texas Instruments | IC SWITCH SPDT SM8 | 100% | View |
| SN74LVC2G53DCTRE4 | Texas Instruments | IC SWITCH SPDT SM8 | 100% | View |
| SN74LVC2G53DCURG4 | Texas Instruments | IC SWITCH SPDT SINGLE 8VSSOP | 100% | View |
| SN74LVC2G53DCT3 | Texas Instruments | IC LOGIC GATE | 87% | View |
| NLX2G66DMUTAG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 86% | View |
| NLX2G66DMUTCG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 86% | View |
Submit your RFQ for SN74LVC2G53YEAR and get a quote within 24 hours.
