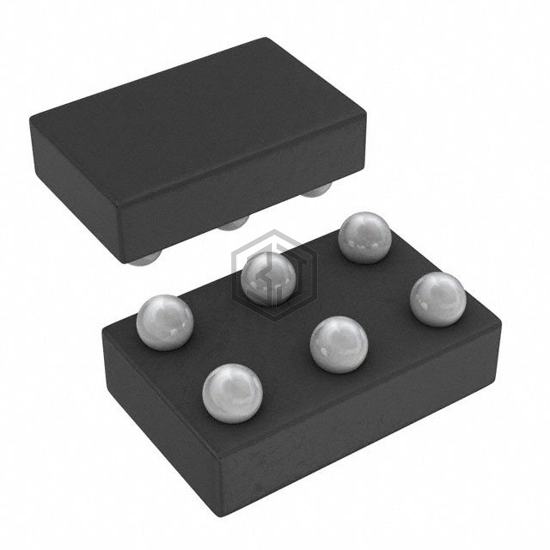

IC INVERT SCHMITT 2CH 2IN 6DSBGA
SN74LVC2G14YEAR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 2CH 2IN 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFBGA, DSBGA.
In Stock: 88,690
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.3V ~ 1.4V |
| Logic Level - High | 1.4V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DSBGA |
| Package / Case | 6-XFBGA, DSBGA |
SN74LVC2G14YEAR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC2G14DCKT | Texas Instruments | IC INVERT SCHMITT 2CH 2IN SC70-6 | 100% | View |
| SN74LVC2G04DBVT | Texas Instruments | IC INVERTER 2CH 2-INP SOT23-6 | 89% | View |
| 74LVC2G14W6-7 | Diodes Incorporated | IC INVERTER 2CH 2-INP SOT26 | 88% | View |
| SN74LVC1G04DCK3 | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 83% | View |
| SN74LVC1G04DSFR | Texas Instruments | IC INVERTER 1CH 1-INP 6SON | 83% | View |
| SN74LVC1G04DBVT | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 83% | View |
Submit your RFQ for SN74LVC2G14YEAR and get a quote within 24 hours.
