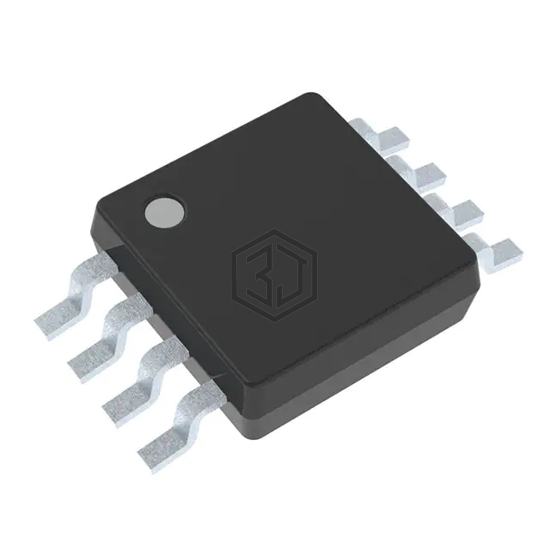

IC GATE NAND 2CH 2-INP 8VSSOP
SN74LVC2G132DCUR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 2CH 2-INP 8VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G132DBVT | Texas Instruments | IC GATE NAND 1CH 2-INP SOT23-5 | 96% | View |
| SN74LVC2G00YZPR | Texas Instruments | IC GATE NAND 2CH 2-INP 8DSBGA | 88% | View |
| SN74LVC1G00DPWR | Texas Instruments | IC GATE NAND 1CH 2-INP 4X2SON | 87% | View |
| SN74LVC1G00DSF2 | Texas Instruments | IC GATE NAND 1CH 2-INP 6SON | 87% | View |
| 74LVC2G00HD4-7 | Diodes Incorporated | IC GATE NAND 2CH 2-INP DFN2010-8 | 86% | View |
| SN74LVC1G10DRYR | Texas Instruments | IC GATE NAND 1CH 3-INP 6SON | 82% | View |
Submit your RFQ for SN74LVC2G132DCUR and get a quote within 24 hours.
