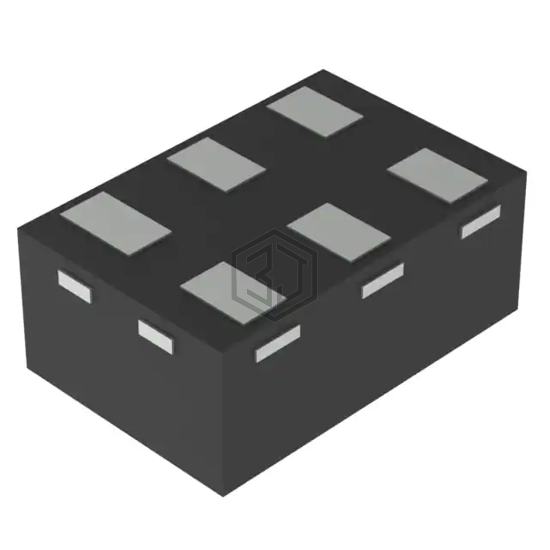

IC SWITCH SPDT 6SON
SN74LVC1G3157DRY2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH SPDT 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-UFDFN, number of circuits 1.
In Stock: 2,027
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.7ns, 3.8ns |
| -3db Bandwidth | 340MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 5.2pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G3157DTBR | Texas Instruments | IC SWITCH SPDT SINGLE 6X2SON | 100% | View |
| SN74LVC1G3157DRLR | Texas Instruments | IC SWITCH SPDT SINGLE 6SOT | 100% | View |
| SN74LVC1G3157DSFR | Texas Instruments | IC SWITCH SPDT ANLG 6SON | 100% | View |
| 1P1G3157QDCKRQ1 | Texas Instruments | IC SWITCH SPDT SC70-6 | 96% | View |
| TS5A23157DGST | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 81% | View |
| TS5A23157TDGSRQ1 | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 81% | View |
Submit your RFQ for SN74LVC1G3157DRY2 and get a quote within 24 hours.
