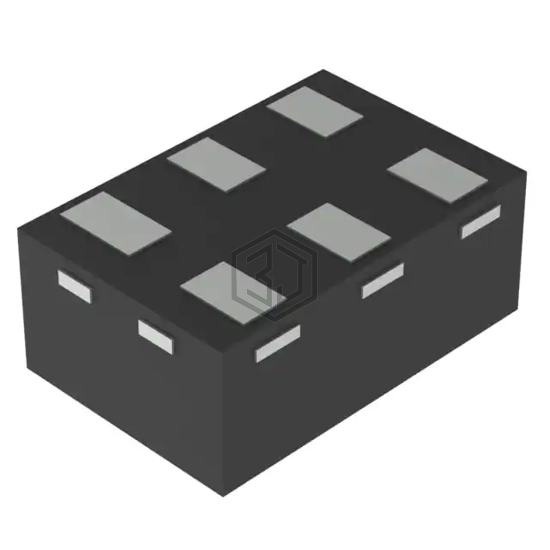

IC INVERT SCHMITT 1CH 1-INP 6SON
SN74LVC1G14DRY2 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1-INP 6SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 6-UFDFN.
In Stock: 9,361
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SON (1.45x1) |
| Package / Case | 6-UFDFN |
SN74LVC1G14DRY2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LVC1G14GM,132 | Nexperia USA Inc. | IC INVERT SCHMITT 1CH 1-IN 6XSON | 93% | View |
| NC7SZ04M5 | Fairchild Semiconductor | IC INVERTER 1CH 1-INP SOT23-5 | 85% | View |
| 74LVC1G04GV,125 | Nexperia USA Inc. | IC INVERTER 1CH 1-INP SC74A | 84% | View |
| TC7SZ14FE,LJ(CT | Toshiba Semiconductor and Storage | IC INVERTER SCHMITT 1CH 1-IN ESV | 82% | View |
| 74LVC2G04GS,132 | Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6XSON | 73% | View |
| 74LVC3G14GF | Nexperia USA Inc. | IC INVERT SCHMITT 3CH 3-IN 8XSON | 71% | View |
Submit your RFQ for SN74LVC1G14DRY2 and get a quote within 24 hours.
