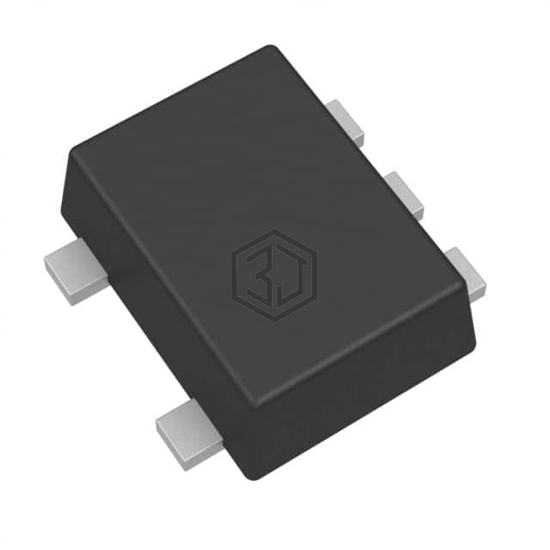

IC INVERT SCHMITT 1CH 1-INP SOT5
SN74LVC1G14DRLR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1-INP SOT5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case SOT-553.
In Stock: 2,448
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-5 |
| Package / Case | SOT-553 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G14DBVT | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 100% | View |
| 74LVC1G04QW5-7 | Diodes Incorporated | IC INVERTER 1CH 1-IN SOT25 TR/3K | 88% | View |
| 74LVC1G14SE-7 | Diodes Incorporated | IC INVERT SCHMITT 1CH 1IN SOT353 | 88% | View |
| 74LVC2G14GM,115 | Nexperia USA Inc. | IC INVERT SCHMITT 2CH 2-IN 6XSON | 79% | View |
| 74LVC3G14GT | NXP USA Inc. | IC INVERT SCHMITT 3CH 3-IN 8XSON | 75% | View |
| 74LVC2GU04GM,132 | Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6XSON | 72% | View |
Submit your RFQ for SN74LVC1G14DRLR and get a quote within 24 hours.
