IC INVERT SCHMITT 1CH 1IN SC70

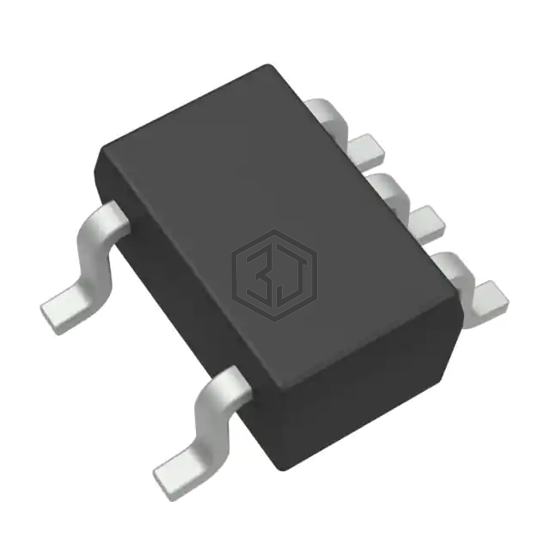

SN74LVC1G14DCKTG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN SC70. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 5,911
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
SN74LVC1G14DCKTG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G14DCKR | Texas Instruments | IC INVERT SCHMITT 1CH 1IN SC70 | 100% | View |
| SN74LVC1GU04DRLR | Texas Instruments | IC INVERTER 1CH 1-INP SOT5 | 93% | View |
| SN74LVC1G04MDBVREP | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 92% | View |
| SN74LVC1G04QDCKRQ1 | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 89% | View |
| 74LVC1G14FW4-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP DFN1010-6 | 88% | View |
| 74LVC1G14FS3-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP DFN0808-4 | 84% | View |
Submit your RFQ for SN74LVC1G14DCKTG4 and get a quote within 24 hours.
