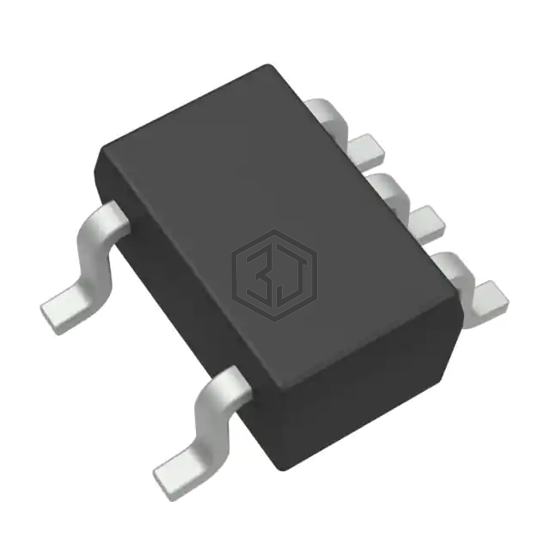

IC INVERT SCHMITT 1CH 1IN SC70
SN74LVC1G14DCKT is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INVERT SCHMITT 1CH 1IN SC70. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 8,275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G04DBVR | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 89% | View |
| SN74LVC2G14DCKR | Texas Instruments | IC INVERT SCHMITT 2CH 2IN SC70-6 | 86% | View |
| 74LVC1G04FW5-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP DFN1010-6 | 84% | View |
| 74LVC1G04FS3-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP DFN0808-4 | 84% | View |
| 74LVC1GU04GW,125 | Nexperia USA Inc. | IC INVERTER 1CH 1-INP 5TSSOP | 83% | View |
| 74LVC3G14GT,115 | Nexperia USA Inc. | IC INVERT SCHMITT 3CH 3-IN 8XSON | 74% | View |
Submit your RFQ for SN74LVC1G14DCKT and get a quote within 24 hours.
