IC GATE NAND 1CH 2-INP SC70-5

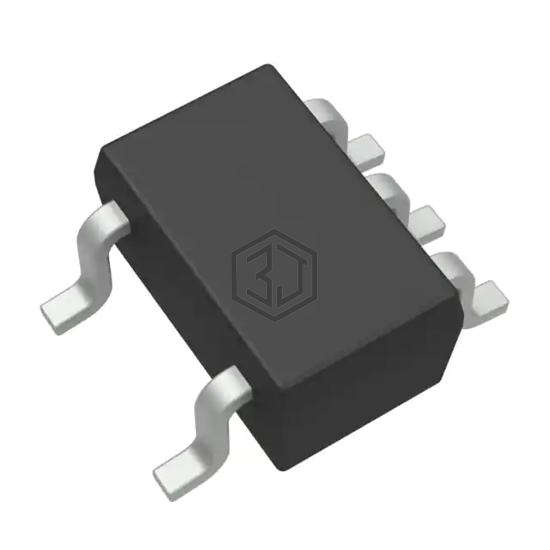

SN74LVC1G132DCKR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 1CH 2-INP SC70-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 5,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.39V ~ 1.87V |
| Logic Level - High | 1.16V ~ 3.33V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G00MDBVREP | Texas Instruments | IC GATE NAND 1CH 2-INP SOT23-5 | 94% | View |
| SN74LVC1G00DRY2 | Texas Instruments | IC GATE NAND 1CH 2-INP 6SON | 92% | View |
| SN74LVC1G00DCKR | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 92% | View |
| 74LVC1G00GV-Q100H | Nexperia USA Inc. | IC GATE NAND 1CH 2-INP SC74A | 85% | View |
| 74LVC1G10GW,125 | Nexperia USA Inc. | IC GATE NAND 1CH 3-INP 6TSSOP | 85% | View |
| 74LVC1G00GV,125 | Nexperia USA Inc. | IC GATE NAND 1CH 2-INP SC74A | 85% | View |
Submit your RFQ for SN74LVC1G132DCKR and get a quote within 24 hours.
