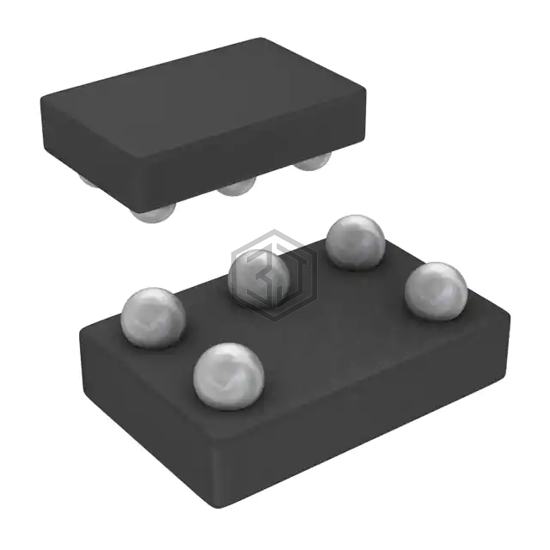

IC GATE NOR 1CH 2-INP 5DSBGA
SN74LVC1G02YEAR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 1CH 2-INP 5DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.65V ~ 5.5V, package / case 5-XFBGA, DSBGA.
In Stock: 15,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DSBGA (1.4x0.9) |
| Package / Case | 5-XFBGA, DSBGA |
SN74LVC1G02YEAR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G02YEPR | Texas Instruments | IC GATE NOR 1CH 2-INP 5DSBGA | 100% | View |
| SN74LVC1G02DSF2 | Texas Instruments | IC GATE NOR 1CH 2-INP 6SON | 98% | View |
| SN74LVC1G27DRYR | Texas Instruments | IC GATE NOR 1CH 3-INP 6SON | 96% | View |
| 74LVC1G27GF,132 | NXP USA Inc. | IC GATE NOR 1CH 3-INP 6XSON | 90% | View |
| 74LVC1G27GW,125 | Nexperia USA Inc. | IC GATE NOR 1CH 3-INP SOT363 | 86% | View |
| 74LVC1G02FW5-7 | Diodes Incorporated | IC GATE NOR 1CH 2-INP DFN1010-6 | 85% | View |
Submit your RFQ for SN74LVC1G02YEAR and get a quote within 24 hours.
