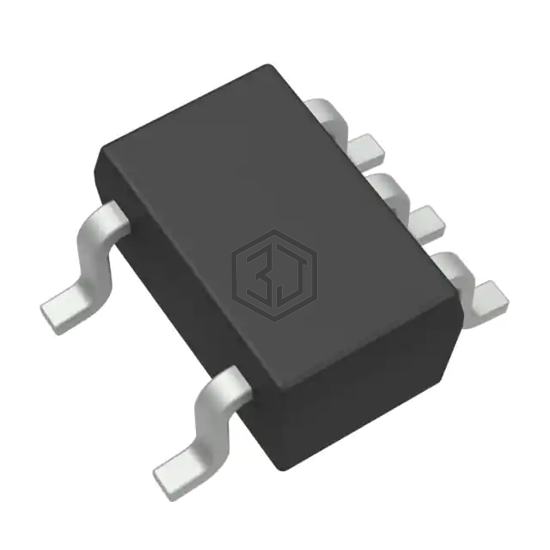

IC GATE NOR 1CH 2-INP SC70-5
SN74LVC1G02DCKJ is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NOR 1CH 2-INP SC70-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 6,540
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
SN74LVC1G02DCKJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LVC1G02DCKT | Texas Instruments | IC GATE NOR 1CH 2-INP SC70-5 | 100% | View |
| SN74LVC1G02DSFR | Texas Instruments | IC GATE NOR 1CH 2-INP 6SON | 100% | View |
| SN74LVC2G02YZPR | Texas Instruments | IC GATE NOR 2CH 2-INP 8DSBGA | 95% | View |
| 74LVC1G02GW-Q100H | Nexperia USA Inc. | IC GATE NOR 1CH 2-INP 5TSSOP | 92% | View |
| 74LVC1G02GX,125 | NXP USA Inc. | IC GATE NOR 1CH 2-INP 5X2SON | 92% | View |
| 74LVC1G27GM,132 | Nexperia USA Inc. | IC GATE NOR 1CH 3-INP 6XSON | 88% | View |
Submit your RFQ for SN74LVC1G02DCKJ and get a quote within 24 hours.
