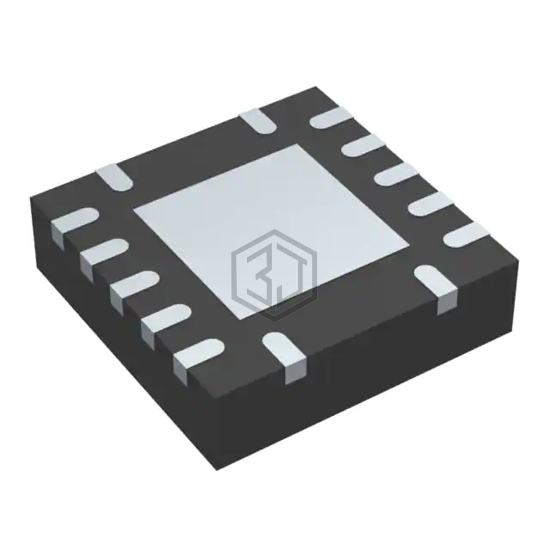

IC SWITCH QUAD 1X1 14QFN
SN74LV4066ARGYRG4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC SWITCH QUAD 1X1 14QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 14-VFQFN Exposed Pad, number of circuits 4.
In Stock: 6,383
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 12ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 0.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -45dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-VQFN (3.5x3.5) |
SN74LV4066ARGYRG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC4066PW | Texas Instruments | IC SWITCH QUAD 1X1 14TSSOP | 100% | View |
| SN74LV4066APW | Texas Instruments | IC SWITCH QUAD 1X1 14TSSOP | 100% | View |
| SN74LV4066AD | Texas Instruments | IC SWITCH QUAD 1X1 14SOIC | 100% | View |
| 74VHC4053AFT | Toshiba Semiconductor and Storage | IC MUX/DEMUX TRIPLE 2X1 16TSSOP | 64% | View |
| MAX4615EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 63% | View |
| MAX4615EUD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 63% | View |
Submit your RFQ for SN74LV4066ARGYRG4 and get a quote within 24 hours.
