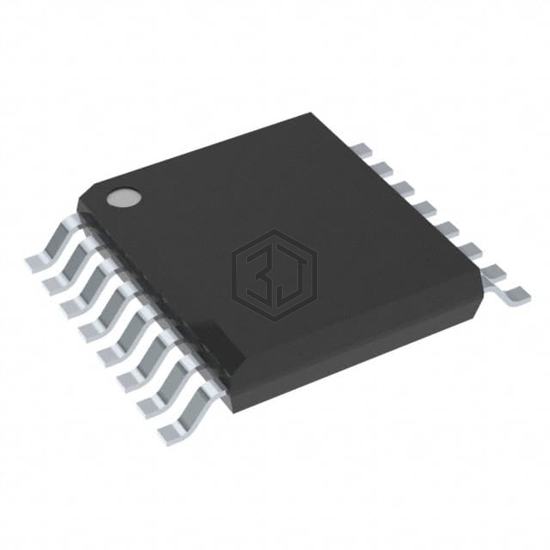

IC MULTIPLEXER DUAL 4X1 16SSOP
SN74LV4052ADBRE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Texas Instruments. IC MULTIPLEXER DUAL 4X1 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SSOP (0.209", 5.30mm Width), number of circuits 2.
In Stock: 5,922
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 700mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 14ns |
| -3db Bandwidth | 50MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 0.5pF, 13.1pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -45dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
SN74LV4052ADBRE4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CLV4051ATPWRG4Q1 | Texas Instruments | IC MUX/DEMUX 8X1 16TSSOP | 83% | View |
| SN74LV4051APWR | Texas Instruments | IC MUX/DEMUX 8X1 16TSSOP | 83% | View |
| ADG759BCPZ-REEL | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 20LFCSP | 70% | View |
| MAX4636EUB+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 59% | View |
| MAX4652ESE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16SOIC | 50% | View |
| MAX4653EUE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 50% | View |
Submit your RFQ for SN74LV4052ADBRE4 and get a quote within 24 hours.
