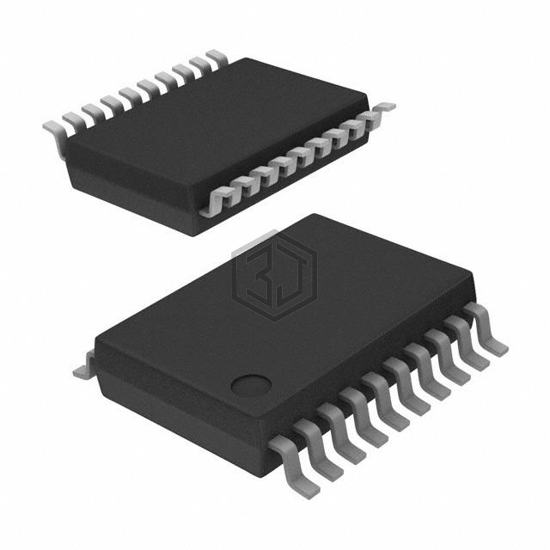

IC FF D-TYPE SNGL 8BIT 20SSOP
SN74LV273ADBRE4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 5.5V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 4,885
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 160 MHz |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 20 µA |
| Input Capacitance | 2 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
SN74LV273ADBRE4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LV273ANSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 100% | View |
| SN74LV273APWRE4 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74LV273APWRG4 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74LV273APWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 99% | View |
| 74VHCT273ATTR | STMicroelectronics | IC FF D-TYPE SNGL 8BIT 20TSSOP | 74% | View |
| 74VHCT273AMTR | STMicroelectronics | IC FF D-TYPE SNGL 8BIT 20SOP | 74% | View |
Submit your RFQ for SN74LV273ADBRE4 and get a quote within 24 hours.
