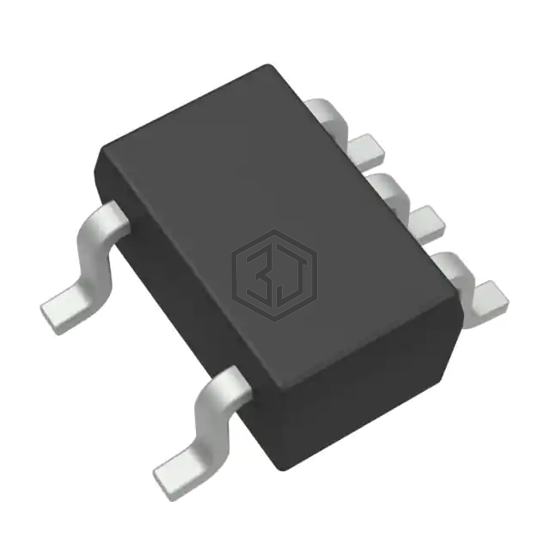

IC GATE XOR 1CH 2-INP SC70-5
SN74LV1T86DCKR is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE XOR 1CH 2-INP SC70-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.6V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 3,440
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.6V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.58V ~ 0.8V |
| Logic Level - High | 0.94V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 30pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74LV1T86GVH | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP 5TSOP | 81% | View |
| NLVVHC1G86DFT2G | onsemi | IC GATE XOR 1CH 2-INP SC88A | 81% | View |
| SN74AHCT1G86DBVT | Texas Instruments | IC GATE XOR 1CH 2-INP SOT23-5 | 75% | View |
| 74AHCT1G86GV-Q100, | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP SC74A | 75% | View |
| 74LV1T86GWH | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP 5TSSOP | 73% | View |
| 74LV1T86GXH | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP 5X2SON | 73% | View |
Submit your RFQ for SN74LV1T86DCKR and get a quote within 24 hours.
