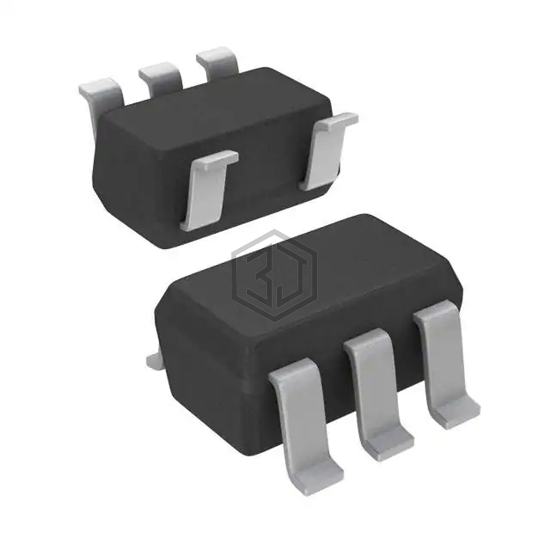

IC GATE XOR 1CH 2-INP SOT23-5
SN74LV1T86DBVRG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE XOR 1CH 2-INP SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.6V ~ 5.5V, package / case SC-74A, SOT-753.
In Stock: 8,571
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | XOR (Exclusive OR) |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.6V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.58V ~ 0.8V |
| Logic Level - High | 0.94V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 30pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
SN74LV1T86DBVRG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74AHC1G86QW5-7 | Diodes Incorporated | IC GATE XOR 1CH 2-INP SOT25 | 81% | View |
| 74AHC1G86W5-7 | Diodes Incorporated | IC GATE XOR 1CH 2-INP SOT25 | 81% | View |
| 74AHC1G86GW-Q100,1 | Nexperia USA Inc. | IC GATE XOR 1CH 2-INP 5TSSOP | 81% | View |
| NLVVHC1G86DTT1G | onsemi | IC GATE XOR 1CH 2-INP 5TSOP | 81% | View |
| MC74VHC1GT86DFT1 | onsemi | IC GATE XOR 1CH 2-INP SC-70 | 80% | View |
| MC74VHC86DR2G | onsemi | IC GATE XOR 4CH 2-INP 14SOIC | 73% | View |
Submit your RFQ for SN74LV1T86DBVRG4 and get a quote within 24 hours.
