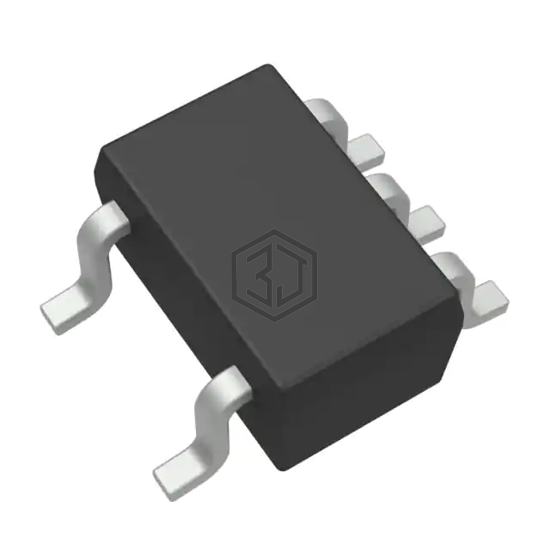

IC GATE NAND 1CH 2-INP SC70-5
SN74LV1T00DCKRG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 1CH 2-INP SC70-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.6V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 1,902
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.6V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.58V ~ 0.8V |
| Logic Level - High | 0.94V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 30pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
SN74LV1T00DCKRG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74VHC1GT00DFT1G | onsemi | IC GATE NAND 1CH 2-INP SC88A | 84% | View |
| SN74LV1T00QDCKRQ1 | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 82% | View |
| MC74VHC1GT00DF1G | onsemi | IC GATE NAND 1CH 2-INP SC88A | 79% | View |
| M74VHC1G132DTT1G | onsemi | IC GATE NAND 1CH 2IN 5TSOP | 77% | View |
| SN74AHC00RGYR | Texas Instruments | IC GATE NAND 4CH 2-INP 14VQFN | 75% | View |
| 74LV1T00GXH | Nexperia USA Inc. | IC GATE NAND 1CH 2-INP 5X2SON | 72% | View |
Submit your RFQ for SN74LV1T00DCKRG4 and get a quote within 24 hours.
