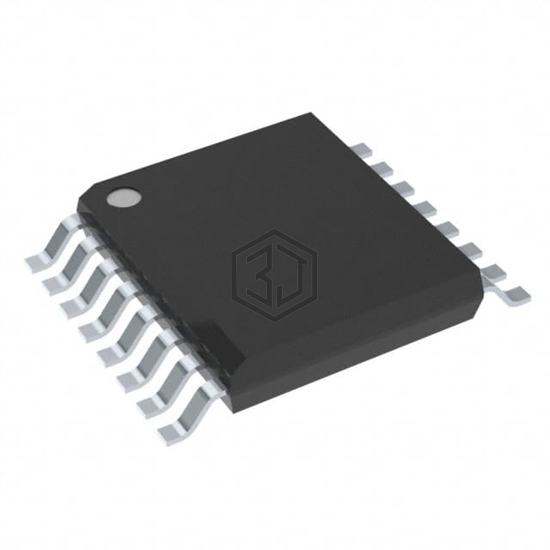

IC FF D-TYPE SNGL 6BIT 16SSOP
SN74LV174ADBRG4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 6BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 5.5V, package / case 16-SSOP (0.209", 5.30mm Width).
In Stock: 2,792
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Clock Frequency | 180 MHz |
| Max Propagation Delay @ V, Max CL | 9.2ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 20 µA |
| Input Capacitance | 1.7 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SSOP |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
SN74LV174ADBRG4 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LV174ADGVR | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16TVSOP | 100% | View |
| SN74LV174ADR | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16SOIC | 100% | View |
| SN74LV174APWR | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16TSSOP | 100% | View |
| SN74AHC174PWR | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16TSSOP | 86% | View |
| SN74AHC174DR | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16SOIC | 86% | View |
| SN74AHC174D | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16SOIC | 86% | View |
Submit your RFQ for SN74LV174ADBRG4 and get a quote within 24 hours.
