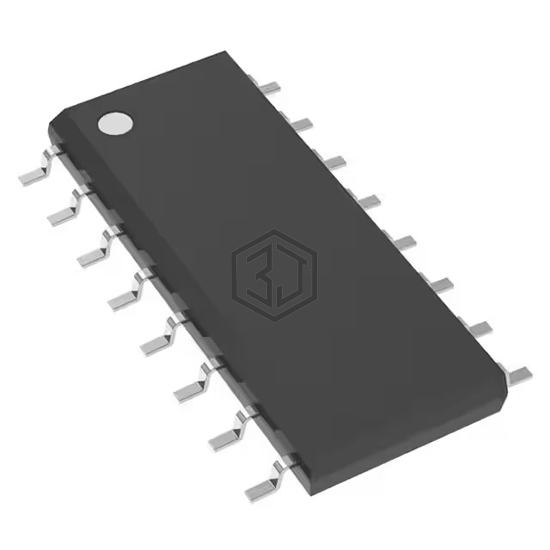

IC FF JK TYPE DUAL 1BIT 16SOIC
SN74LS109AD is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 16-SOIC (0.154", 3.90mm Width).
In Stock: 6,960
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 33 MHz |
| Max Propagation Delay @ V, Max CL | 40ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400µA, 8mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 8 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74LS109ADR | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16SOIC | 100% | View |
| SN74LS109ANSR | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16SO | 93% | View |
| SN74ALS112AD | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16SOIC | 83% | View |
| SN74ALS109ANSR | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16SO | 83% | View |
| SN74ALS109AD | Texas Instruments | IC FF JK TYPE DUAL 1BIT 16SOIC | 83% | View |
| HEC4027BT,118 | NXP USA Inc. | IC FF JK TYPE DUAL 1BIT 16SO | 76% | View |
Submit your RFQ for SN74LS109AD and get a quote within 24 hours.
