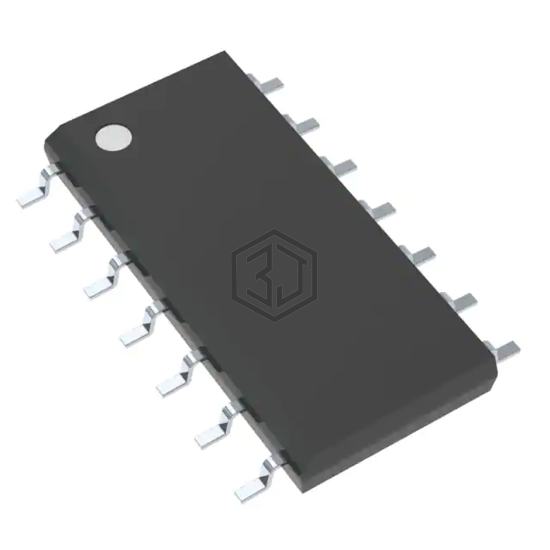

IC GATE NAND 4CH 2-INP 14SOIC
SN74LS00DG4 is a Logic - Gates and Inverters manufactured by Texas Instruments. IC GATE NAND 4CH 2-INP 14SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.75V ~ 5.25V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 7,018
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | - |
| Current - Output High, Low | 400µA, 8mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
SN74LS00DG4 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SNJ54LS00W | Texas Instruments | IC GATE NAND 4CH 2-INP 14CFP | 100% | View |
| SN74LS10NSR | Texas Instruments | IC GATE NAND 3CH 3-INP 14SOP | 95% | View |
| SN74LS20D | Texas Instruments | IC GATE NAND 2CH 4-INP 14SOIC | 90% | View |
| SN74LS132NSR | Texas Instruments | IC GATE NAND 4CH 2IN 14SOP | 90% | View |
| SN74ALS10ADR | Texas Instruments | IC GATE NAND 3CH 3-INP 14SOIC | 89% | View |
| SN74ALS30ADR | Texas Instruments | IC GATE NAND 1CH 8-INP 14SOIC | 77% | View |
