DUAL POSITIVE-EDGE-TRIGGERED F/F

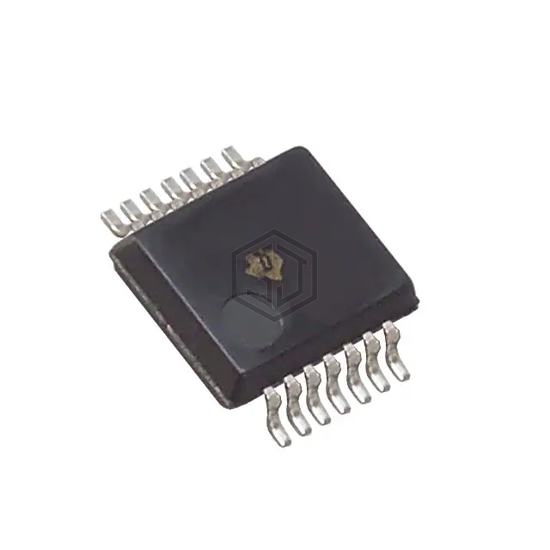

SN74HCT74ADBR is a Logic - Flip Flops manufactured by Texas Instruments. DUAL POSITIVE-EDGE-TRIGGERED F/F. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 3,905
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 46 MHz |
| Max Propagation Delay @ V, Max CL | 25ns @ 5.5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
SN74HCT74ADBR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCT74PWR | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14TSSOP | 100% | View |
| SN74HCT74DBR | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SSOP | 100% | View |
| SN74HCT74DT | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SOIC | 100% | View |
| SN74HCT74NSR | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SOP | 100% | View |
| SN74HCT74NS | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SOP | 100% | View |
| SN74HCT74PWRE4 | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14TSSOP | 100% | View |
Submit your RFQ for SN74HCT74ADBR and get a quote within 24 hours.
