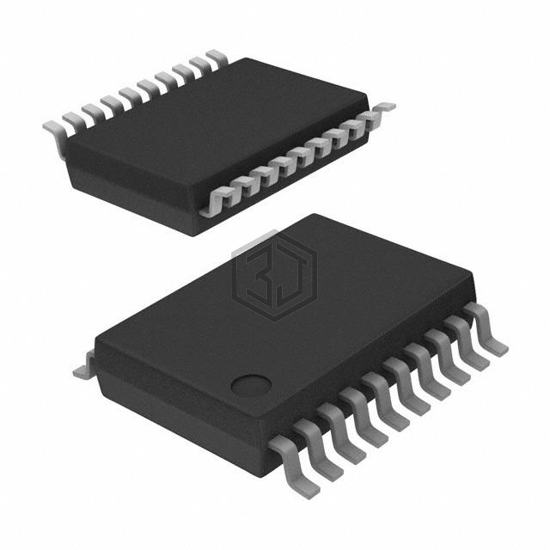

IC FF D-TYPE SNGL 8BIT 20SSOP
SN74HCT574DBR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 8BIT 20SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-SSOP (0.209", 5.30mm Width).
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 40 MHz |
| Max Propagation Delay @ V, Max CL | 47ns @ 5.5V, 150pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-SSOP |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCT574NSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 100% | View |
| SN74HCT574PWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 100% | View |
| SN74HCT574DW | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 100% | View |
| SN74HCT374PWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 98% | View |
| SN74HCT374NSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 98% | View |
| SN74HCT374PWT | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20TSSOP | 98% | View |
Submit your RFQ for SN74HCT574DBR and get a quote within 24 hours.
