SCHMITT-TRIGGER INPUT DUAL D-TYP

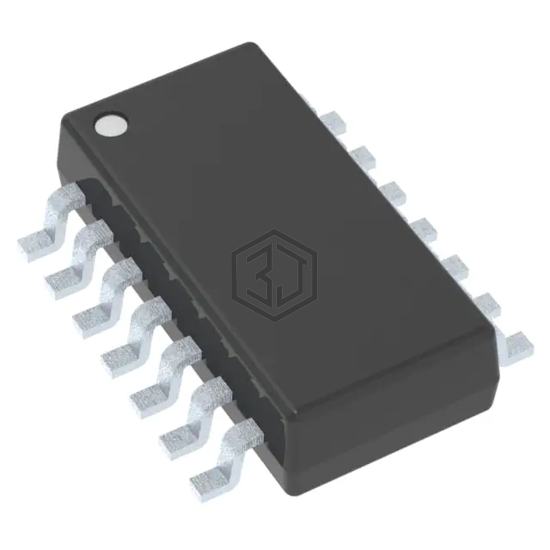

SN74HCS74DYYR is a Logic - Flip Flops manufactured by Texas Instruments. SCHMITT-TRIGGER INPUT DUAL D-TYP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.
In Stock: 5,191
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 105 MHz |
| Max Propagation Delay @ V, Max CL | 15ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 2 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOT-23-THIN |
| Package / Case | SOT-23-14 Thin, SOT-23 Variant |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCS74BQAR | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14WQFN | 100% | View |
| SN74HCS74QPWRQ1 | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14TSSOP | 100% | View |
| SN74HCS74PWR | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14TSSOP | 100% | View |
| SN74HCS74DR | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SOIC | 100% | View |
| SN74HCS74QBQARQ1 | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14WQFN | 100% | View |
| SN74HCS74QDRQ1 | Texas Instruments | IC FF D-TYPE DUAL 1BIT 14SOIC | 100% | View |
Submit your RFQ for SN74HCS74DYYR and get a quote within 24 hours.
