QUADRUPLE 2-INPUT OR GATES WITH

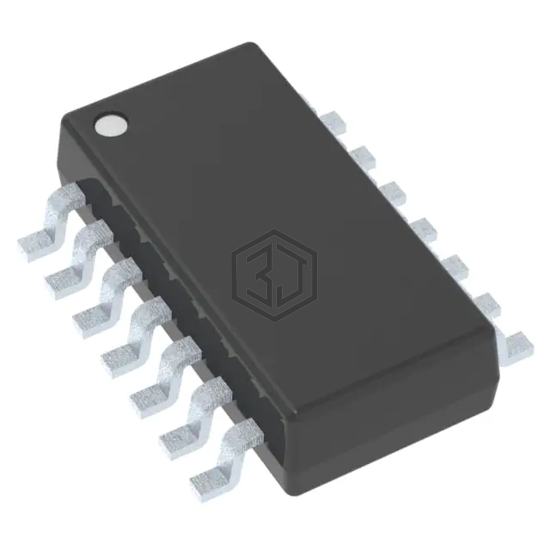

SN74HCS32DYYR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT OR GATES WITH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case SOT-23-14 Thin, SOT-23 Variant.
In Stock: 6,399
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOT-23-THIN |
| Package / Case | SOT-23-14 Thin, SOT-23 Variant |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCS32QPWRQ1 | Texas Instruments | IC GATE OR 4CH 2IN 14TSSOP | 100% | View |
| SN74HCS32PWR | Texas Instruments | IC GATE OR 4CH 2IN 14TSSOP | 100% | View |
| 74HCS32PW-Q100J | Nexperia USA Inc. | 74HCS32PW-Q100/SOT402/TSSOP14 | 98% | View |
| SN74HCS4075DR | Texas Instruments | IC GATE OR SCHMIT 3CH 3IN 14SOIC | 96% | View |
| 74VHCT32BQ-Q100X | Nexperia USA Inc. | IC GATE OR 4CH 2-INP 14DHVQFN | 85% | View |
| 74AHC2G32DP-Q100H | Nexperia USA Inc. | IC GATE OR 2CH 2-INP 8TSSOP | 79% | View |
Submit your RFQ for SN74HCS32DYYR and get a quote within 24 hours.
