QUADRUPLE 2-INPUT OR GATES WITH

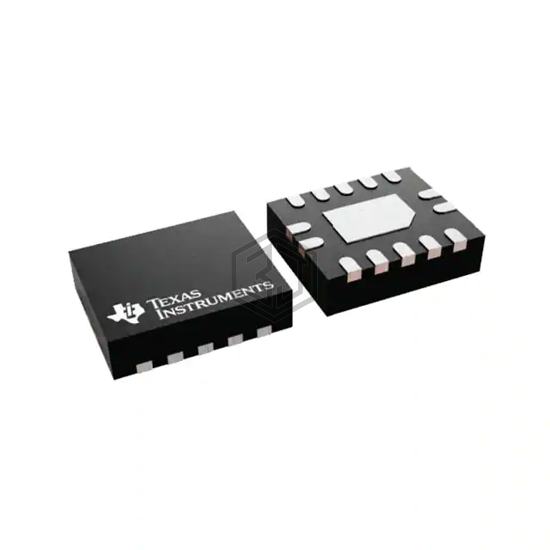

SN74HCS32BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT OR GATES WITH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.
In Stock: 2,427
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Package / Case | 14-QFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCS32DR | Texas Instruments | IC GATE OR SCHMIT 4CH 2IN 14SOIC | 100% | View |
| SN74HCS32QBQARQ1 | Texas Instruments | AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO | 100% | View |
| SN74HCS4075QDRQ1 | Texas Instruments | IC GATE OR SCHMIT 3CH 3IN 14SOIC | 96% | View |
| SN74HCS4075PWR | Texas Instruments | IC GATE OR 3CH 3IN 14TSSOP | 96% | View |
| CD74HC4075MT | Texas Instruments | IC GATE OR 3CH 3-INP 14SOIC | 80% | View |
| CD4071BK3 | Harris Corporation | OR LOGIC GATES | 57% | View |
Submit your RFQ for SN74HCS32BQAR and get a quote within 24 hours.
