QUADRUPLE 2-INPUT POSITIVE-AND G

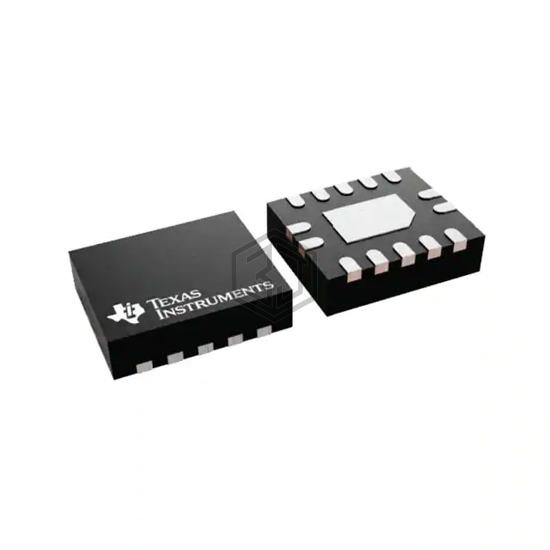

SN74HCS08BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT POSITIVE-AND G. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.
In Stock: 2,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Package / Case | 14-QFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74VHC08DTR2G | onsemi | IC GATE AND 4CH 2-INP 14TSSOP | 89% | View |
| CD74HC08M | Texas Instruments | IC GATE AND 4CH 2-INP 14SOIC | 87% | View |
| NLVVHC1G08DFT1G | onsemi | IC GATE AND 1CH 2-INP SC88A | 76% | View |
| SN74AHC1G08DCKT | Texas Instruments | IC GATE AND 1CH 2-INP SC70-5 | 76% | View |
| NLU1G08CMUTCG | onsemi | IC GATE AND 1CH 2-INP 6UDFN | 74% | View |
| MC74VHC1GT08DFT2 | onsemi | IC GATE AND 1CH 2-INP SC-70 | 73% | View |
Submit your RFQ for SN74HCS08BQAR and get a quote within 24 hours.
