AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO

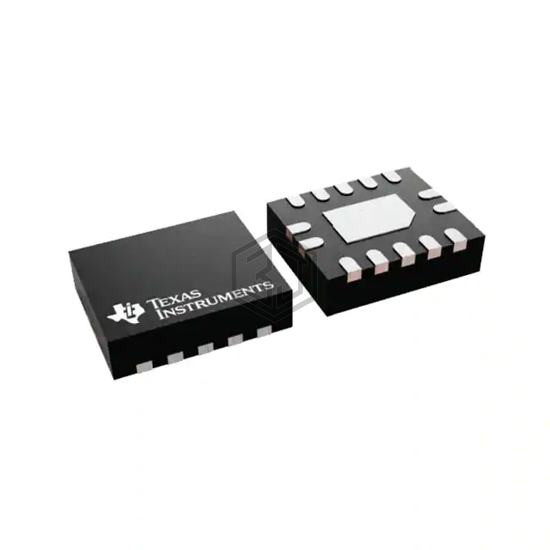

SN74HCS02QBQARQ1 is a Logic - Gates and Inverters manufactured by Texas Instruments. AUTOMOTIVE 4-CH, 2-INPUT, 2-V TO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-WFQFN Exposed Pad.
In Stock: 7,737
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Package / Case | 14-WFQFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HCS7002QPWRQ1 | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 100% | View |
| SN74HCS02PWR | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 100% | View |
| SN74HCS7002DR | Texas Instruments | IC GATE NOR 4CH 2IN 14SOIC | 100% | View |
| SN74HCS02QPWRQ1 | Texas Instruments | IC GATE NOR 4CH 2-INP 14TSSOP | 100% | View |
| SN74HCS02DR | Texas Instruments | IC GATE NOR 4CH 2IN 14SOIC | 100% | View |
| SN74HCS27QDRQ1 | Texas Instruments | IC GATE NOR 3CH 3IN 14SOIC | 96% | View |
Submit your RFQ for SN74HCS02QBQARQ1 and get a quote within 24 hours.
