QUADRUPLE 2-INPUT NAND GATES WIT

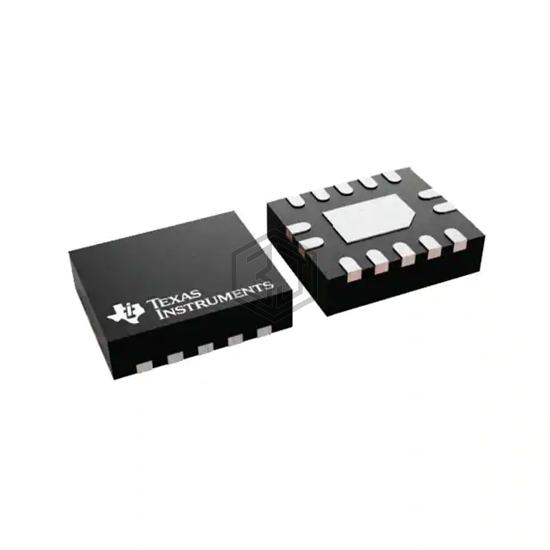

SN74HCS00BQAR is a Logic - Gates and Inverters manufactured by Texas Instruments. QUADRUPLE 2-INPUT NAND GATES WIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 6V, package / case 14-QFN Exposed Pad.
In Stock: 6,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Logic Level - Low | 1V ~ 3V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 12ns @ 6V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-WQFN (3x2.5) |
| Package / Case | 14-QFN Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74HC00ADR2 | onsemi | IC GATE NAND 4CH 2-INP 14-SOIC | 85% | View |
| MC74HCT00ADT | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 83% | View |
| CD74HC10M128 | Harris Corporation | IC GATE NAND 3CH 3-INP 14SOIC | 80% | View |
| CD74HC30M96 | Texas Instruments | IC GATE NAND 1CH 8-INP 14SOIC | 64% | View |
| CD74HC30NS | Texas Instruments | IC GATE NAND 1CH 8-INP 14SOP | 64% | View |
| CD74HC30ME4 | Texas Instruments | IC GATE NAND 1CH 8-INP 14-SOIC | 64% | View |
Submit your RFQ for SN74HCS00BQAR and get a quote within 24 hours.
