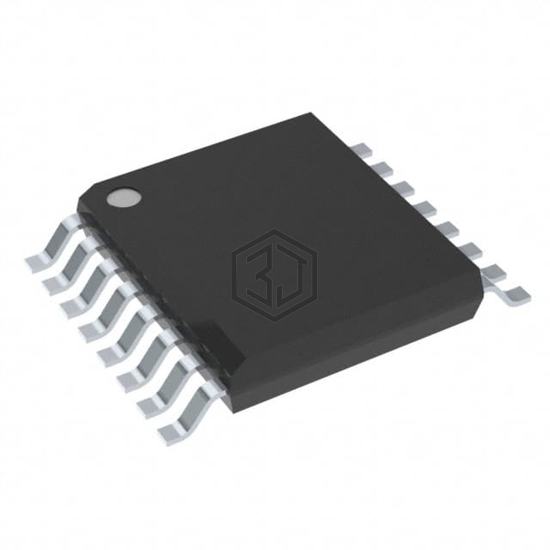

IC FF D-TYPE SNGL 6BIT 16SSOP
SN74HC174DBR is a Logic - Flip Flops manufactured by Texas Instruments. IC FF D-TYPE SNGL 6BIT 16SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 16-SSOP (0.209", 5.30mm Width).
In Stock: 5,887
| Attribute | Value |
|---|---|
| Product Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Clock Frequency | 50 MHz |
| Max Propagation Delay @ V, Max CL | 27ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 8 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SSOP |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HC174PW | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16TSSOP | 100% | View |
| SN74HC174NSR | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16SO | 100% | View |
| SN74HC174PWRG4 | Texas Instruments | IC FF D-TYPE SNGL 6BIT 16TSSOP | 100% | View |
| SN74HC273DBRG4 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SSOP | 95% | View |
| CD74HCT273M96 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 83% | View |
| CD74HCT273MR2499 | Harris Corporation | IC FF D-TYPE SNGL 8BIT 20SOIC | 83% | View |
Submit your RFQ for SN74HC174DBR and get a quote within 24 hours.
