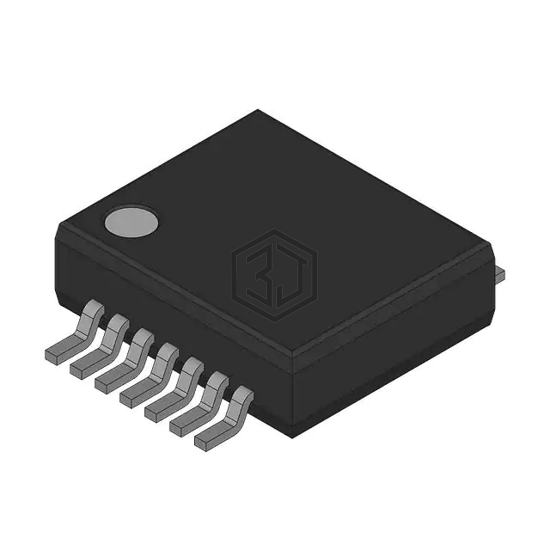

IC INV SCHMITT 6CH 1-IN 14SSOP
SN74HC14DB is a Logic - Gates and Inverters manufactured by Texas Instruments. IC INV SCHMITT 6CH 1-IN 14SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 14-SSOP (0.209", 5.30mm Width).
In Stock: 6,310
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.3V ~ 1.2V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SSOP |
| Package / Case | 14-SSOP (0.209", 5.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| M74HC14YTTR | STMicroelectronics | IC INVERTER 6CH 1-INP 14TSSOP | 96% | View |
| SN74HC04D | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 93% | View |
| SN74HC04DRG3 | Texas Instruments | IC INVERTER 6CH 1-INP 14SOIC | 93% | View |
| MC74HC14ADR2G | onsemi | IC INV SCHMITT 6CH 1-IN 14SOIC | 88% | View |
| MC74HC14ADR2 | onsemi | IC INVERTER HEX SCHMITT 14SOIC | 88% | View |
| 74HCU04T14-13 | Diodes Incorporated | IC INVERTER 6CH 1-INP 14TSSOP | 81% | View |
Submit your RFQ for SN74HC14DB and get a quote within 24 hours.
