IC FF JK TYPE DUAL 1BIT 16SOIC

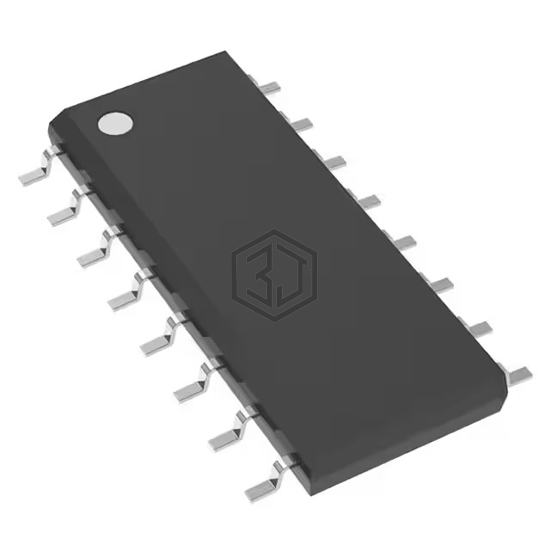

SN74HC109DRG4 is a Logic - Flip Flops manufactured by Texas Instruments. IC FF JK TYPE DUAL 1BIT 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 6V, package / case 16-SOIC (0.154", 3.90mm Width).
In Stock: 8,901
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Set(Preset) and Reset |
| Type | JK Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 60 MHz |
| Max Propagation Delay @ V, Max CL | 30ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
SN74HC109DRG4 is Obsolete. Consider these compatible alternatives:
